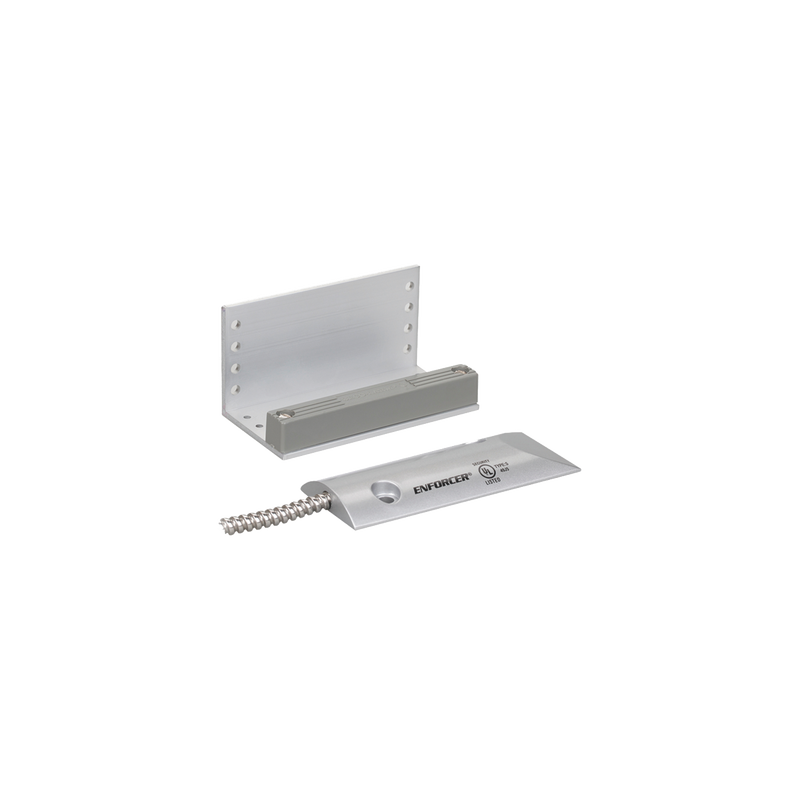

Contacto magnético de uso rudo para piso- 2-3/4 in(70mm) Brecha, Bucle cerrado

SM226LQ
Rating
$26.20
Tax included
Quantity

Description





IP RatingWeatherproof IP66 - Epoxy sealed
Operating Voltage12~24 VDC
Loop TypeClosed loop
Electrical ConfigurationSPDT
Operation Gap2-3/4', (70mm)
Material - MagnetABS plastic on L-bracket
Material - SwitchHeavy-duty cast-aluminum case
Material - Terminals24' (61cm) armored leads
ContactsDeactivated rhodium on gold under-plating
Contact Rating0.2A@10VDC (max), 3W (max)
Operating Temperature-15º~+160º F (-25º~70º C)
Switch Cycles50 Million (0.1mA@5VDC)
Switch Dimensions4-5/16″x1-3/4″x7/16″ (110x44x11mm)
Magnet Dimensions3-15/16″x2″x2″ (100x51x51mm)
Magnet TypeAlnico 5
Product Details
SM226LQ
500 Items
