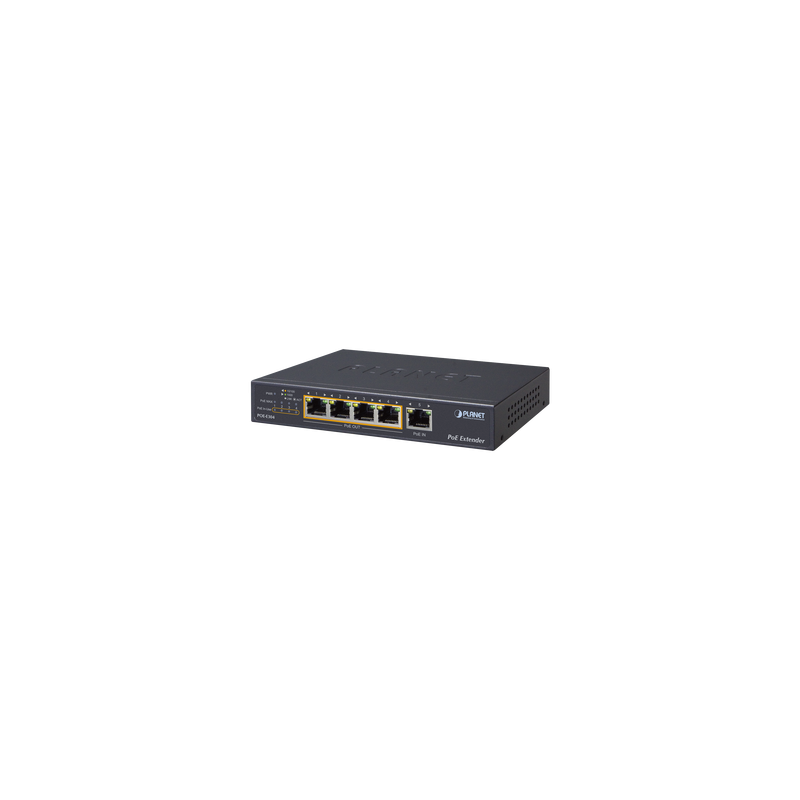

Extensor Ultra PoE de 65 Watts Con 4 Puertos Gigabit de Salida 802.3 af/at

POE-E304
Rating
$146.25
Tax included
Quantity

Description



















Instalación Plug and Play

El POE-E304 Se utiliza entre el equipo de alimentación (PSE) y un dispositivo alimentado (PD) ofreciendo una solución rentable y rápida para duplicar el rango estándar de PoE de 100 a 200 metros.












Especificaciones Fisicas
Puertos de RedPoE In Port
1 x 10/100/1000BASE-T Ethernet with Ultra PoE “Data + DC” in, auto MDI/MDI-X, auto-negotiation RJ45 connector

PoE Out Port
4 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector
Negociación10/100/1000Mbps
SwitchStore-and-Forward
Tabla MAC Address2K
Data Buffer2Mbits
Switch Fabric10Gbps
Switch Throughput7.44Mpps @ 64 bytes
Jumbo Frame9K
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
LED IndicatorsPoE In Port
10/100 LNK/ACT (Orange), 1000 LNK/ACT (Green)
PoE Out Port 1 to Port 4
10/100 LNK/ACT (Orange), 1000 LNK/ACT (Green)
PoE-in-Use (Orange)
PoE Max. (Orange)
ProtecciónESD (Ethernet): 6KV
Surge (EFT for power): 2KV
EnclosureMetal
InstalaciónDesktop/Wall mountable
Dimenciones (W x D x H)160 x 92.5 x 28 mm
Peso370g
Requerimientos EnergeticosPoE In: IEEE 802.3bt or 4-pair 802.3at PoE+ compliant with voltage within 50V-56V DC
External DC: 50~56V DC
Consumo Energetico4 watts/13.7BTU (System on with PoE input)
6 watts/20.6BTU (Ethernet full loading without PoE function)
60 watts/205.9BTU (Full loading with PoE function)
Cableado10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)
100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)
1000BASE-T: 4-pair UTP Cat5e, 6, up to 100m (328ft)
EIA/TIA-568 100-ohm STP (100m, 328ft)
Power over Ethernet
PoEPoE In Port
Ultra Power over Ethernet end-span/mid-span PD class 4 PD
Per PoE Out Port
IEEE 802.3at Power over Ethernet Plus end-span PSE
IEEE 802.3af Power over Ethernet end-span PSE
Alimentación PoEPoE In Port
50~56V DC, max. 60 watts
Per PoE Out Port
44~55V DC, max. 30.8 watts
Configuración de PinesPoE In Port
1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2(-), 3/6(+); 4/5(+), 7/8(-)
Per PoE Out Port
1/2 (+), 3/6 (-), end-span (Type A)
Presupuesto de Alimentación PoE50 watts (max.) @ Ultra PoE input
20 watts (max.) @ IEEE 802.3at PoE+ input
Standard Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standard ComplianceIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3x Flow Control
Environment
OperaciónTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
AlmacenamientoTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
